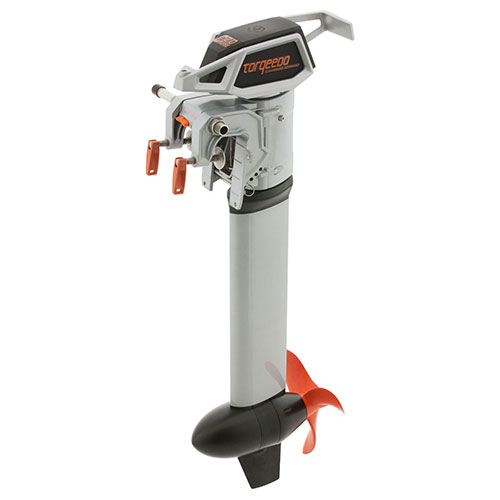

Torqeedo Cruise 4.0 R

$4,499.00

Torqeedo Cruise 4.0 R

$4,499.00
Weight:
30.00 LBS
Shipping:
$149.00 (Fixed shipping cost)
Quantity:
Share

Product Description



Product description


  • Improved robustness and improved corrosion protection
  • 4,000 W input power, in terms of propulsion is comparable with a 8-hp petrol outboard
  • Maximum efficiency outboard
  • Integrated on-board computer with GPS-based range calculation
  • 25 mm2 cable set (3m) including fuse and main switch
  • Emergency magnetic stop key
  • Battery cable bridge for lead batteries
  • Fuse and main switch


Ordering information

  • Equipment included: Integrated on-board computer with GPS and display, fuse and main switch, emergency magnetic stop, 25 mm2 cable set (3m), battery cable bridge for lead batteries, remote throttle (Cruise R models) and remote steering connector (Cruise R models)
  • Warranty: 2 years for non-commercial use

The new models of the Cruise 4.0 have been improved to meet the demanding challenges of everyday commercial use; making them ready to take on the harshest environmental conditions, for example with dinghies and sailboats up to 4 tons.

This makes the Cruise even more rugged in the event that it runs aground and even better protected against corrosion when used extensively in salt water.

The Cruise 4.0 is comparable to a 8 HP petrol outboard and can be easily mounted on your boat with a couple of tools, regardless of whether the remote or tiller version.

A power supply from at least two lithium batteries (Power 26-104) or with lead batteries (lead-gel or AGM) must be provided for operation.



Cruise 4.0 R – Benefits:

  • High-efficiency outboard with 4,000 W input power, equivalent to a 8 HP petrol outboard.
  • All Cruise models are suitable for inflatables and other small boats.
  • We recommend the Cruise 4.0 for dinghies and sailboats up to to 4 tons.
  • Remote steering connector option, comes with remote throttle.
  • Rugged aluminium pylon with reinforced fin – extra robust even when running aground
  • Shaft sealant rings mounted in protected area on the inside of the pylons
  • Highest-grade seawater-proof aluminium (AlMgSi1), hard-anodized for long service life, even in the harshest conditions
  • Lubricant-free polymer plain bearings protect against damage from fishing lines or debris and provide improved mechanical support for propeller shaft – wear-resistant and maintenance-free.
  • Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties.
  • Aluminium fin coated in polyurethane foam provides additional protection from impacts
  • Everything is waterproof to IP67.



Torqeedo Cruise 2.0 R

Connection for standard remote steering



Cruise 4.0 with 1 x Power 48-5000



Speed in knots (km/h)*Range in nm (km)*Running time in hh:mm
Slow 2.7 (5,0) 27,0 (50,0) 10:00
Full throttle 7,0 (13,0) 9,0 (16,0) 01:15

* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.

Information on range and speed

For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power.

And vice-versa, a small reduction in speed is enough to increase the achievable range substantially.

The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.





Technical Data Cruise



Cruise 4.0 R
Input power in watts 4000
Propulsive power in watts 2240
Comparable petrol outboards (propulsive power) 8 HP
Comparable petrol outboards (thrust) 9.9 HP
Maximum overall efficiency in % 56
Static thrust in lbs* 189
Integrated battery -
Nominal voltage 48
Final charging voltage -
Total weight in kg 16.1 (S) / 17.0 (L)
Motor weight without battery in kg -
Weight of integrated battery -
Shaft length in cm 62.5 (S) / 75.5 (L)
Standard propeller
v = speed in km/h at p = power in watts
v19/p4000
Alternative propeller options v30/p4000, v8/p350
Maximum propeller speed in rpm 1300
Control Remote throttle
Steering Provision to connect to standard remote steering; lockable
Tilting device Manual with grounding protection
Tilt angle 61,3°
Trim device Manual, 4-step
Integrated on-board computer Yes
Stepless forward/reverse drive Yes
